$2,495.00

For custom changes not shown in the product images, contact our office via the link below:
STOCK PLAN CHANGE REQUEST FORM

* We will quickly review your change request to provide a cost estimate.

* PLEASE NOTE:Ā Stock Plan Alteration Requests require additional payment arrangements, which are not covered by any pre-selected plan add-ons.

All Plan Add-Ons are in USD.
Final checkout prices may differ due to current currency rates for your region. Confirm your final total before purchase.

Available Plan Add-Ons:
FILE TYPE
- Site Plan (contact for pricing quote)

PLAN ALTERATIONS
- Additional Garage Bay +$295 USD (contact for plan coordination)
- Basement Foundation (all types) +$395 USD
- Slab or Crawlspace Foundation +$195 USD

Plan add-on subject to availability depending on your selected Su Casa Home Plan.

File
NOTE: Digital CAD File is for Consultant Coordination and Multiple Use Licensing.
  • Ready to Build Plans
  • Quality Assured Design
  • Secure payments
  • Plans delivered electronically via email within 2-3 business days (unless custom alterations have been requested).

Interested To Know More About This Plan?Ā

Click the link below to download your PDF.

DOWNLOAD THE MAYFIELD PDF

Ā

A Thoughtful and Well-Designed Transitional Farmhouse EstateĀ

The Mayfield is an executive-level home with over 7,000 sq. ft. of well-designed space. A bold mix of transitional and farmhouse styles gives it both comfort and elegance from the moment you walk in. The grand foyer opens to a vaulted great room that leads straight to the patio. The layout is open and encourages a natural flow between spaces.

The kitchen is made for those who love to cook, with generous prep space and a large walk-in pantry. The formal dining room is surrounded by glass, bringing in light and creating the perfect setting for hosting.

A quiet den near the front entry makes working from home simple. The nearby TV room gives you a place to recharge. Guests can settle into their own main floor suite, complete with a private entrance for added independence.

The vaulted primary suite is a peaceful escape, with a spacious ensuite and two walk-in closets. Even the mudroom is built for function, with a central island that streamlines laundry and storage.

Downstairs, every bedroom has its own walk-in closet. Thereā€™s also a rec room, games room, and a private gym with its own entrance. With a three-car garage and thoughtful storage throughout, the Mayfield has everything you need to live comfortably.

Ā

7198 Sqft 5 Bedroom 4.5 Bath 3 Car Transitional, Farmhouse

Design Details

PLAN #: Mayfield
STYLE: Transitional, Farmhouse
DIMENSIONS: 115ā€™-0ā€ X 69ā€™-9ā€
SQUARE FT: 7198 SQ. FT. (3598 SQFT Main Floor, 3600 SQFT Basement Floor)
BEDROOMS: 5
BATHROOMS: 4.5
GARAGE: 3 CAR
FOUNDATION: Developed Basement

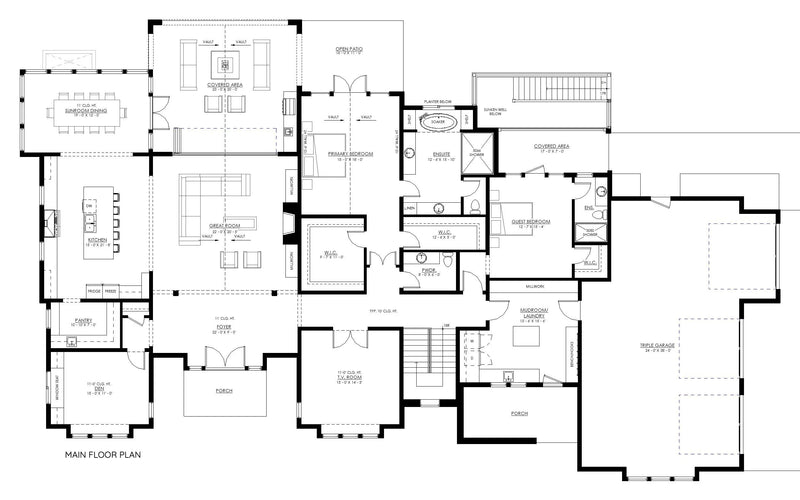

    Floor Plan Features

    • Grand foyer that looks out to vaulted great room and outdoor patio beyond
    • Executive style kitchen with large walk-in pantry/prep kitchen
    • Glass enclosed formal dining room
    • Spacious den off foyer for work or study.
    • Dedicated main floor TV room
    • Grand guest suite on main floor with separate covered entrance for privacy.
    • Main floor vaulted primary bedroom with large ensuite and 2 separate walk-in closets.
    • Spacious mudroom laundry combo with central island for folding and storage.
    • Ample storage throughout living spaces

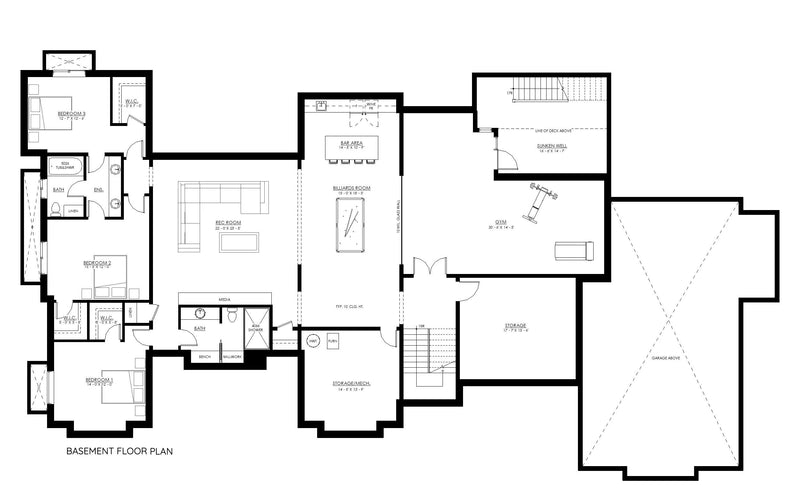

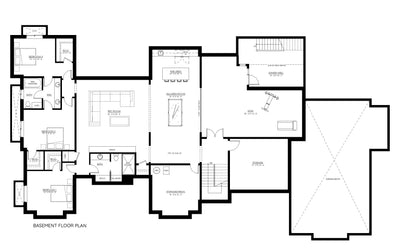

    • Clustered secondary bedrooms on basement level, each equipped with walk-in closets
    • Spacious rec room with attached games/billiards room
    • Spacious gym area with separate entrance.


    View the Mayfield in 3DĀ

    Click the question mark icon (?) to the right to see how to navigate the 3D viewer.

    FAQs

    We Are Here to Answer Your Questions

    Below are some frequently asked questions around purchasing our Home Plans.

    If you don't find what you are looking for, please don't hesitate to reach out to our Client Care team.

    Your House Plans come complete with:

    - Foundation Plans
    - Floor Plans
    - Roof Plan
    - Building Elevations
    - Building Cross Sections
    - Typical Building Specifications
    - Typical Building Details
    - Construction Ready Drawings (dependent on municipality & code)
    - Plus some Exterior Perspective Drawings and Images

    We do not provide the following information:

    - Architectural or Engineering Stamp (handled locally if required)
    - Site Plan (handled locally when required)
    - Electrical Plan
    - Mechanical Drawings (location of heating and air equipment and duct work). Your sub-contractors will handle this information.
    - Framing layouts with beam sizes and locations
    - Energy calculations (handled locally when required)

    All of our plans comply with the Canadian National Building Code.

    Because of the wide range of requirements throughout various states and municipalities, it is possible that the plans may not have all the information required by your local building department.

    If this is the case, we recommend hiring a local design professional or engineer who can assist bringing your plans up to your local building code.

    Some states require that a licensed architect or engineer review and stamp your house plans. If this is the case where you will be building, a local professional will be able to assist you.

    SITE ANALYSIS
    If your home plan will be built in BC, we provide this for an extra fee of $285- available at checkout)

    You are responsible to obtain and coordinate:

    - Roof Truss Drawings via a local truss manufacturer
    - Any Consultant coordination

    PDF files are published documents of your house plans meant for single use construction.

    Digital CAD files are AutoCAD computer files of the original house plans. Purchased through a multi-use license, they are editable drawings meant for consultant use.

    By contacting our office, you can also request (by purchase):

    - 3D Color Renderings
    - Exterior Material Packages
    - Interior Design

    1. Approval on modifications from Su Casa Design team and fee proposal for modifications sent (if required).

    2. Purchase of Stock plan via the Su Casa Shoppe website.

    3. Full Payment for modifications (if requested).

    4. Work on modifications begins based on current project timelines (estimated completion time- 3 to 4 weeks).*

    5. Delivery of project files.

    *For larger and complex modifications, this timeline could be up to 6 weeks to complete.
