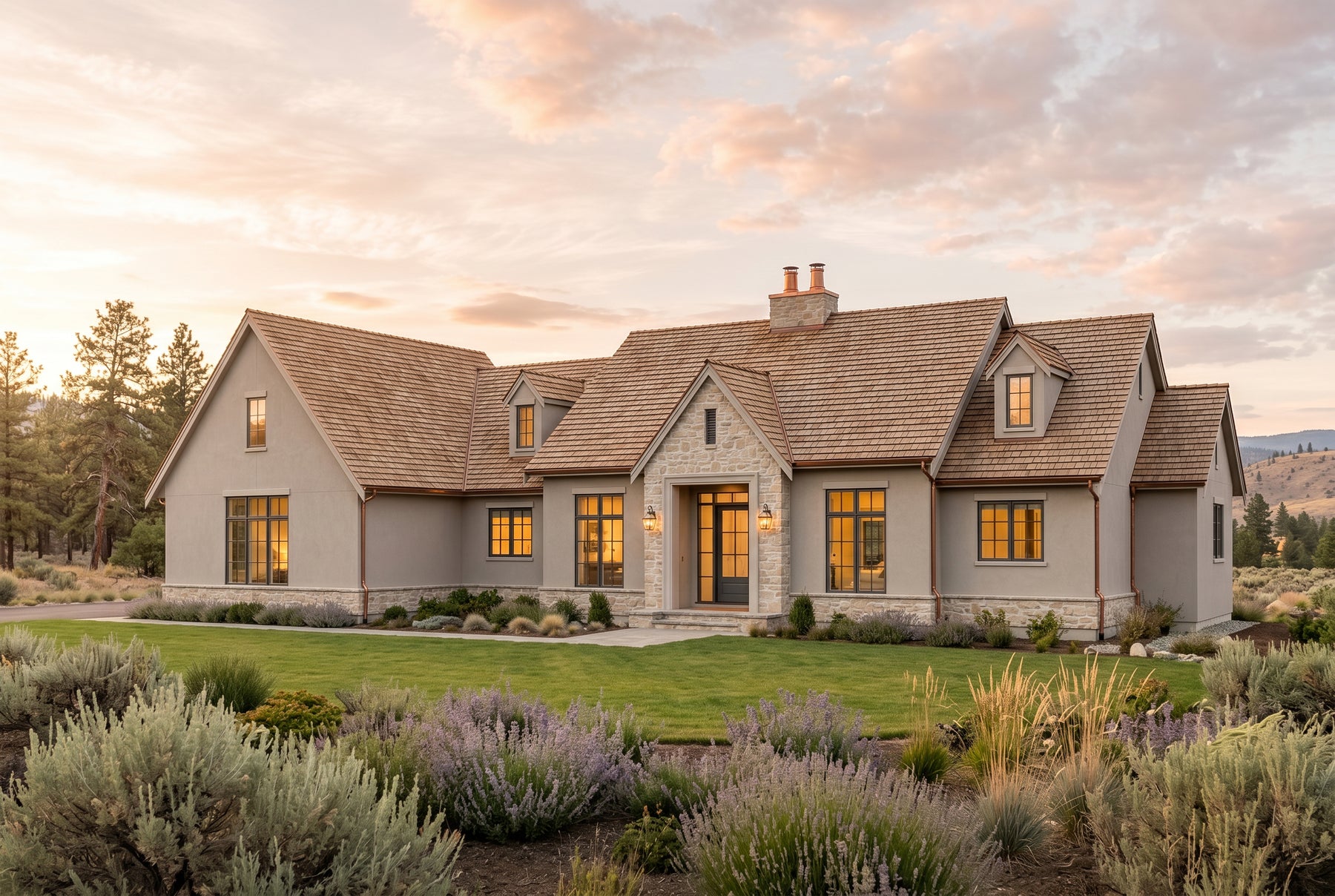

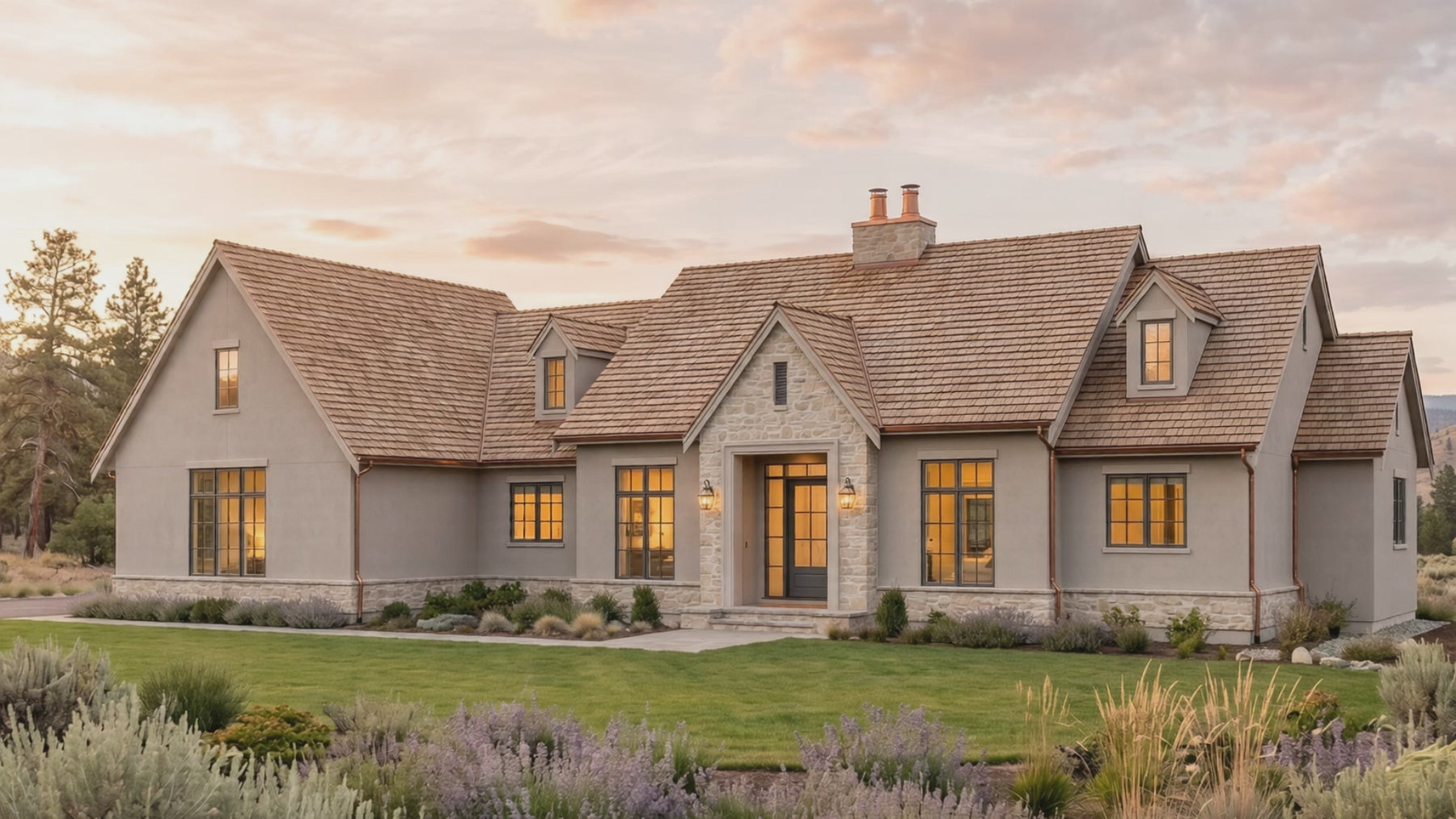

Caldwell
The Caldwell: All in one space
The Caldwell was designed around the way homeowners want to live, bringing together years of client feedback with a thoughtful approach to everyday function. The result is a home that offers main-floor living, a true three-car garage, generous outdoor space, and vaulted ceilings, while still giving each area a sense of purpose and definition.

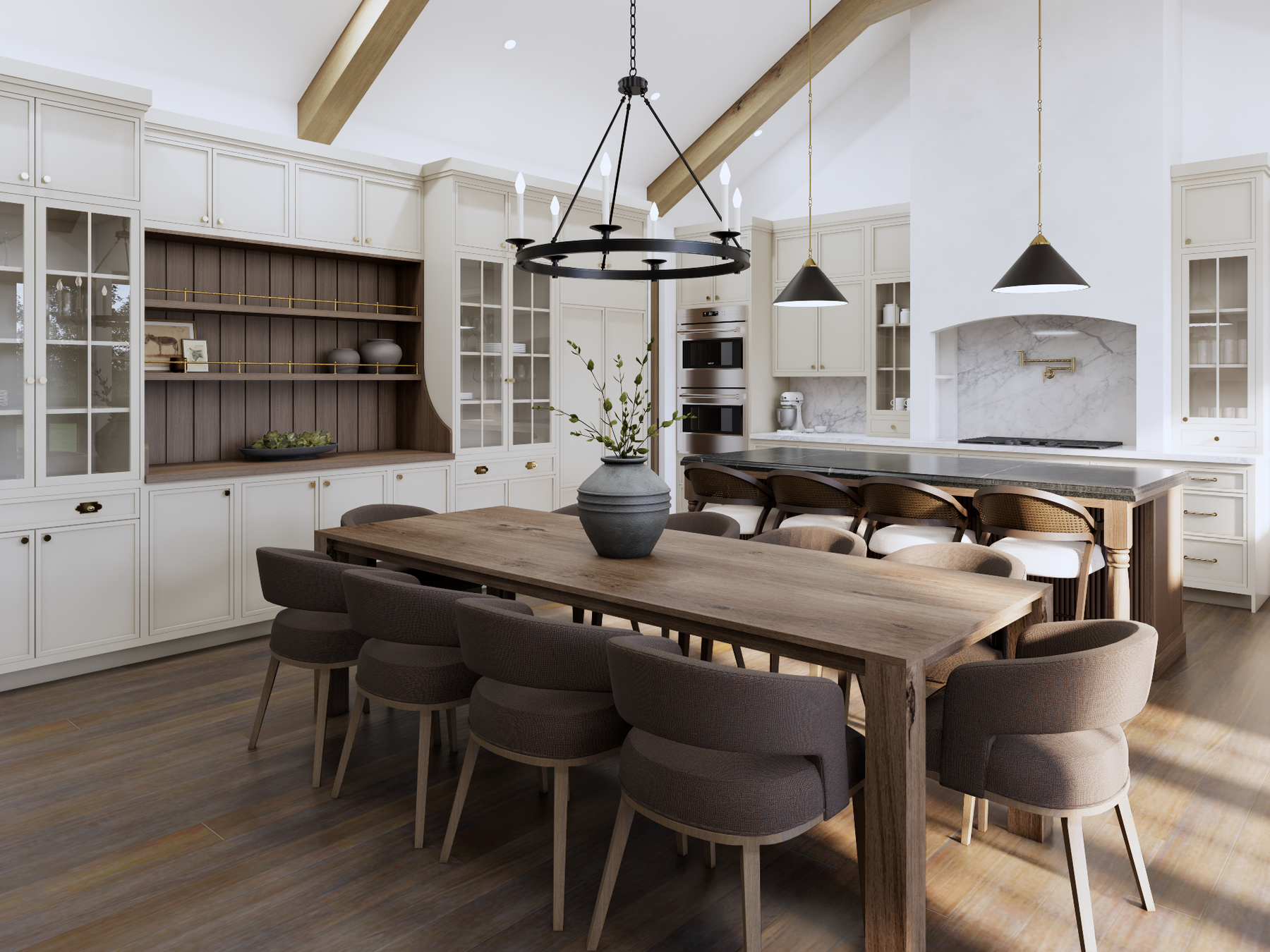

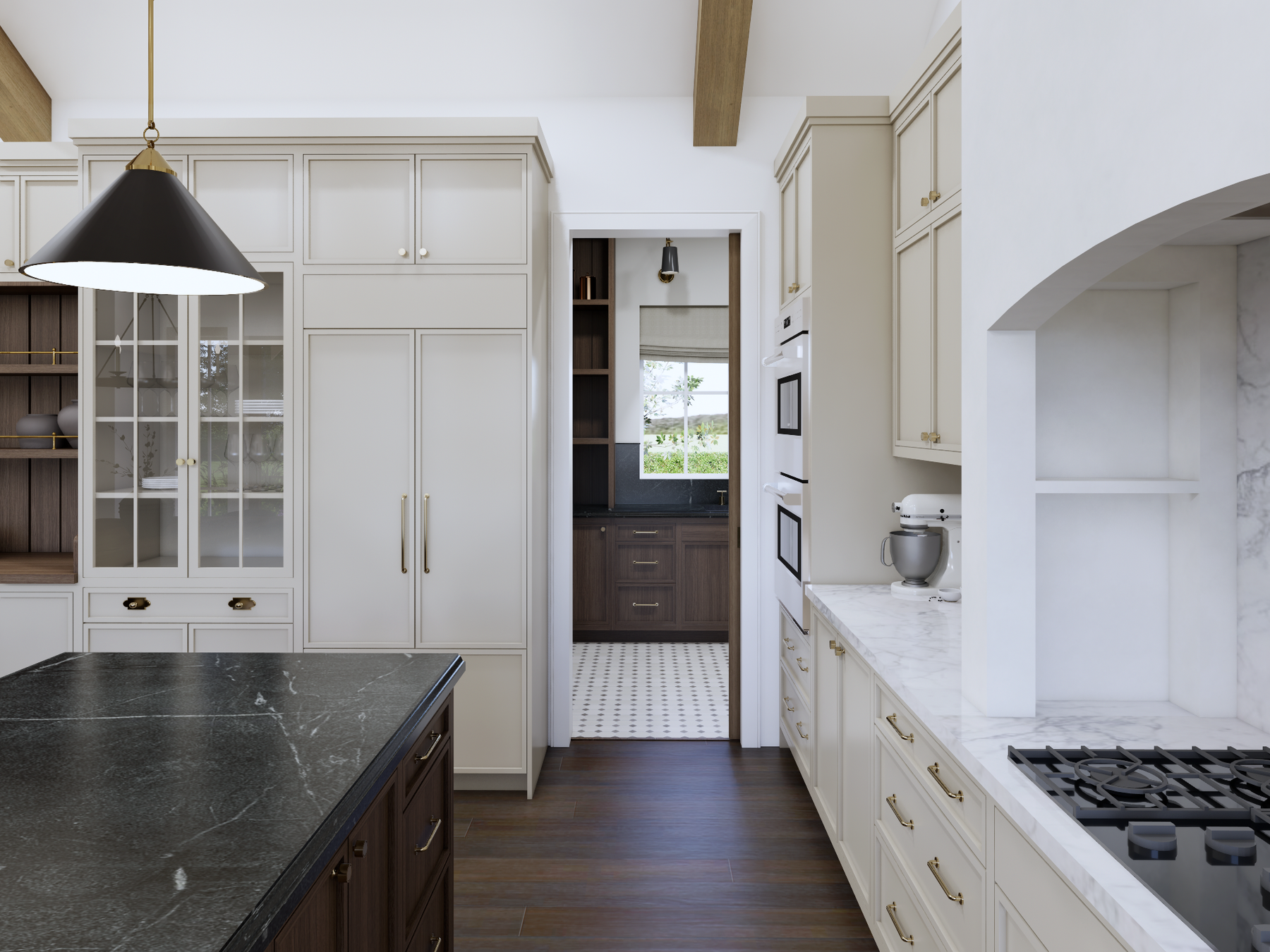

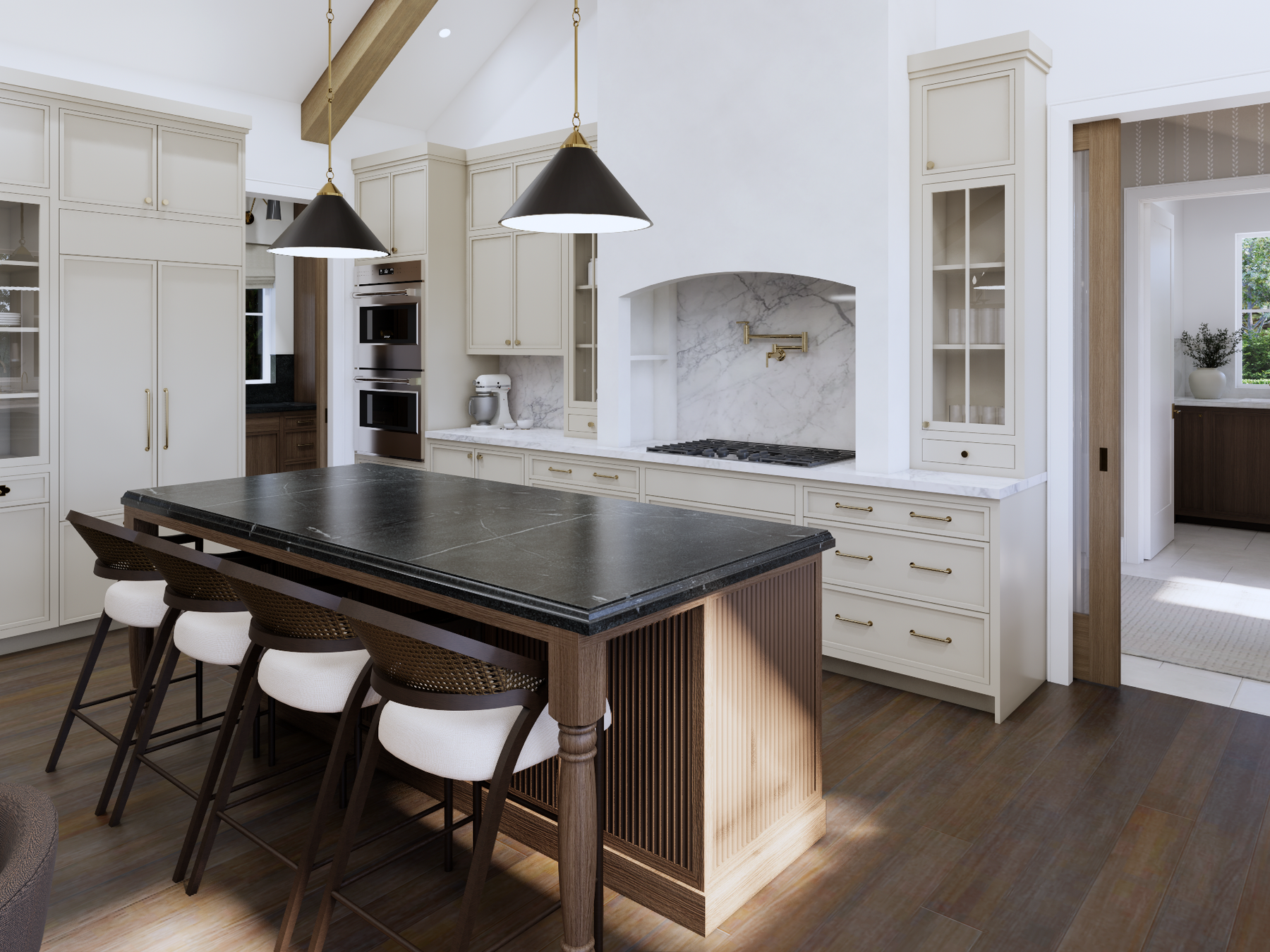

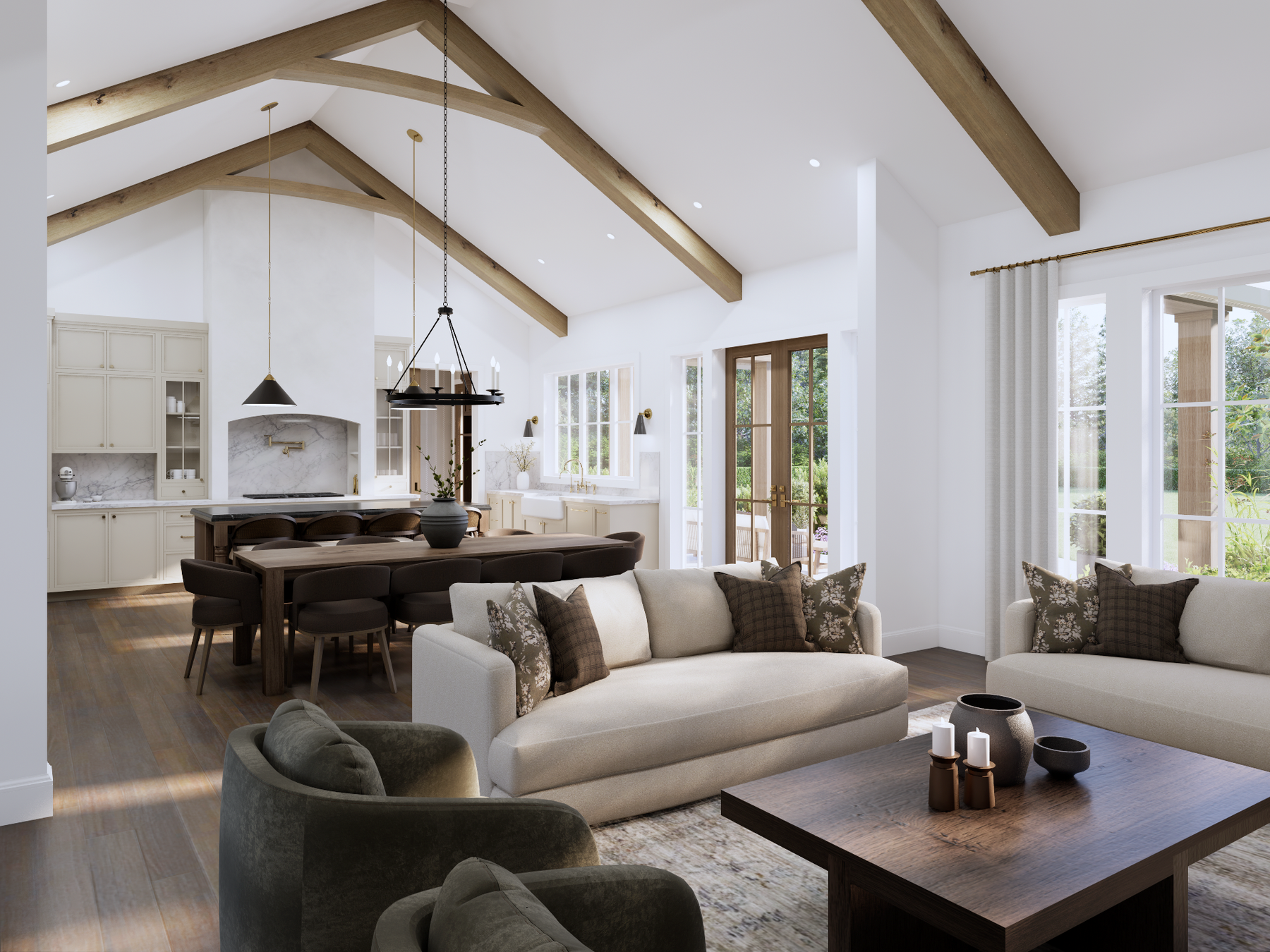

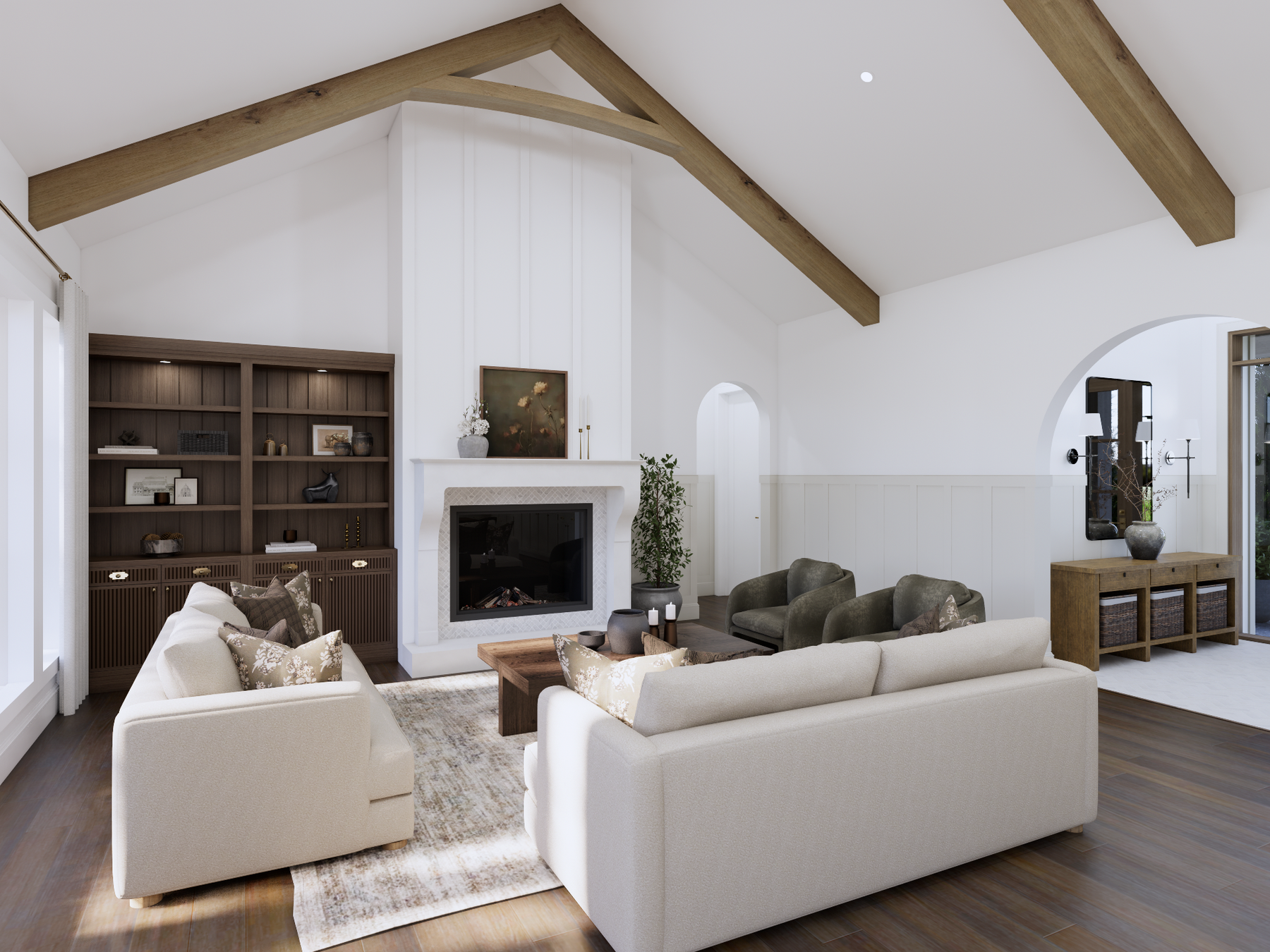

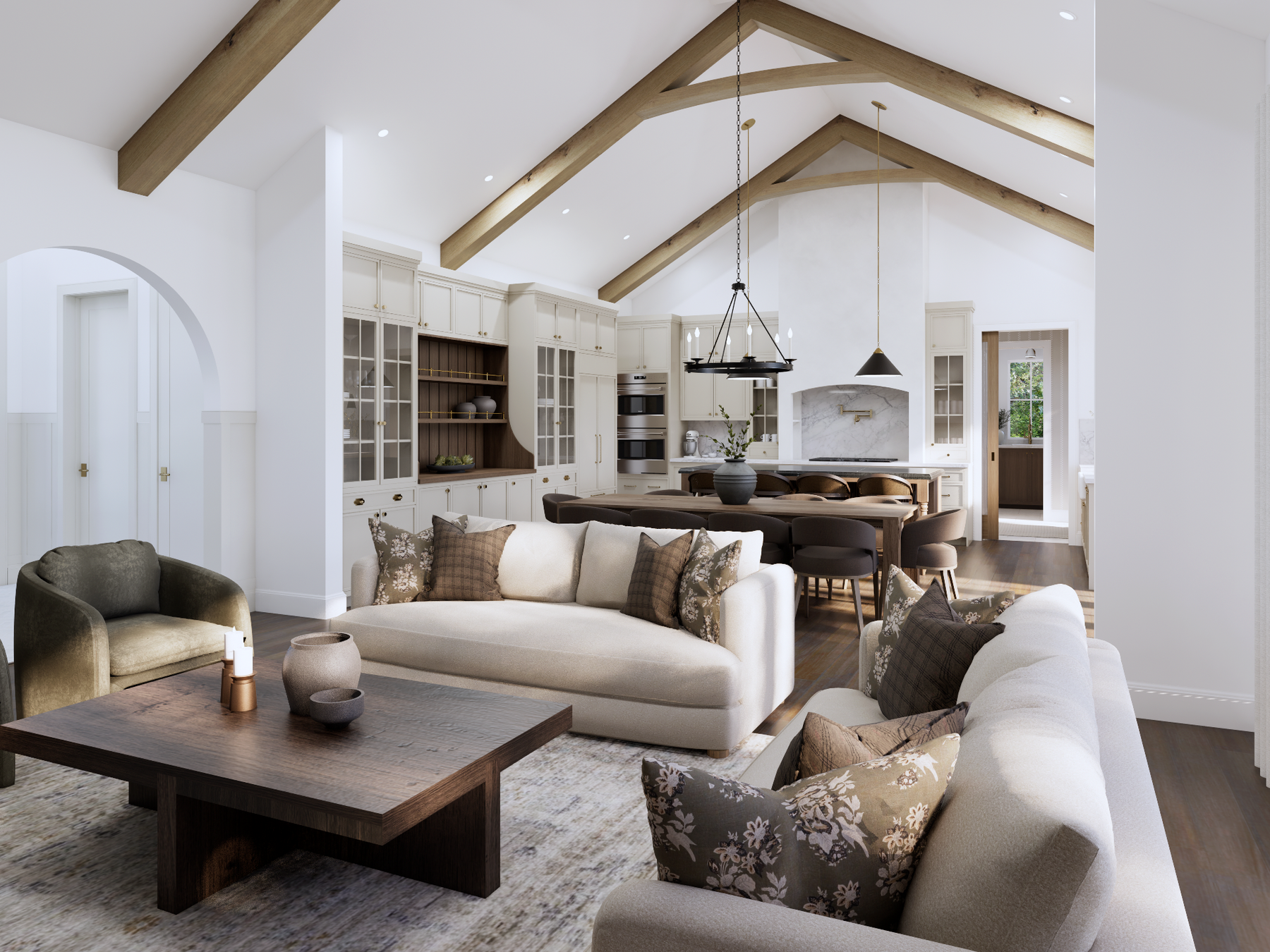

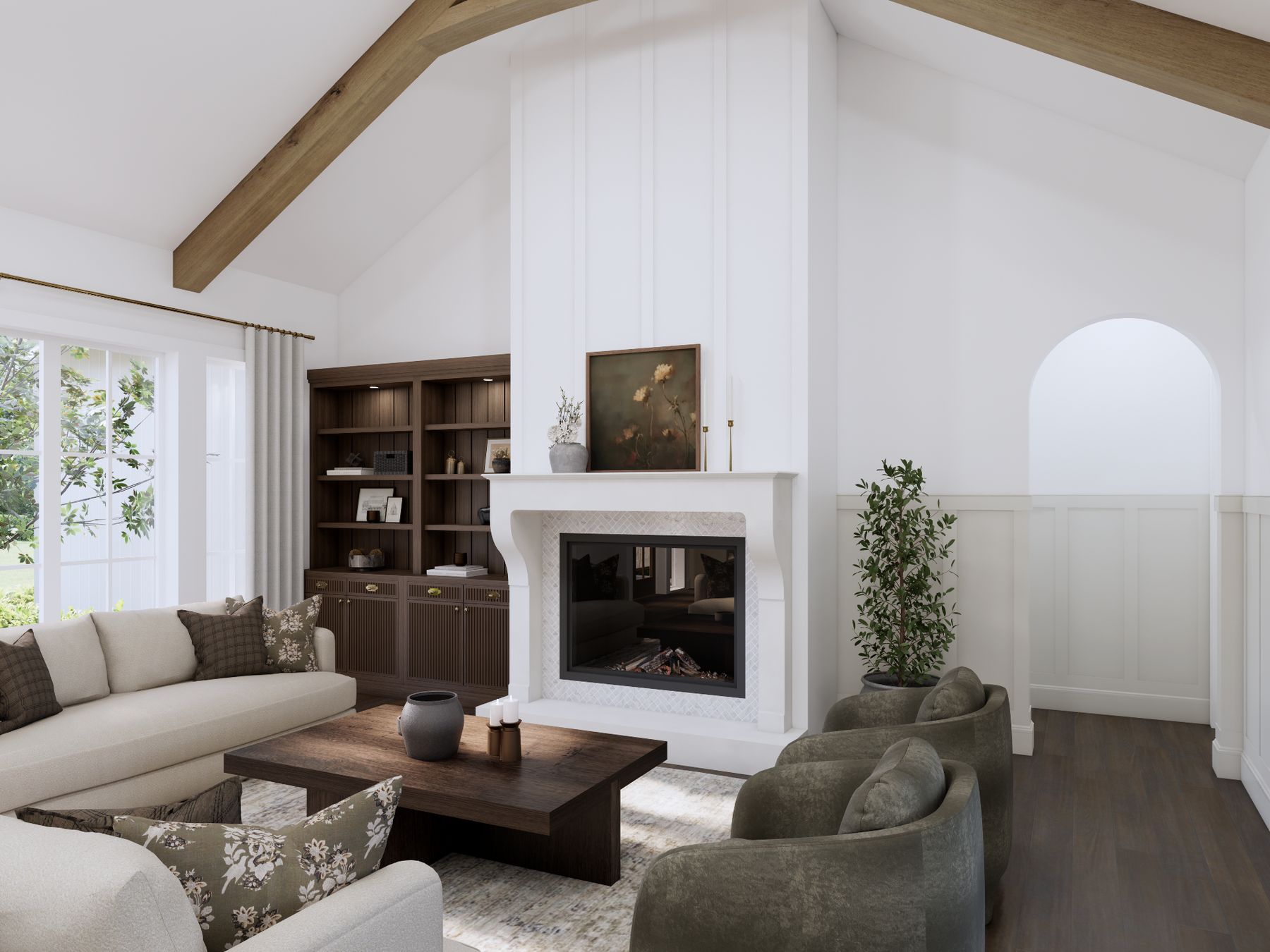

At 2,248 square feet, the layout is intentionally efficient without sacrificing comfort. The kitchen, dining area, and great room form the central gathering space, with vaulted ceilings adding a sense of openness and volume. Large connections to the covered patio extend the living space outdoors, creating an area that is designed to be enjoyed rather than simply passed through.

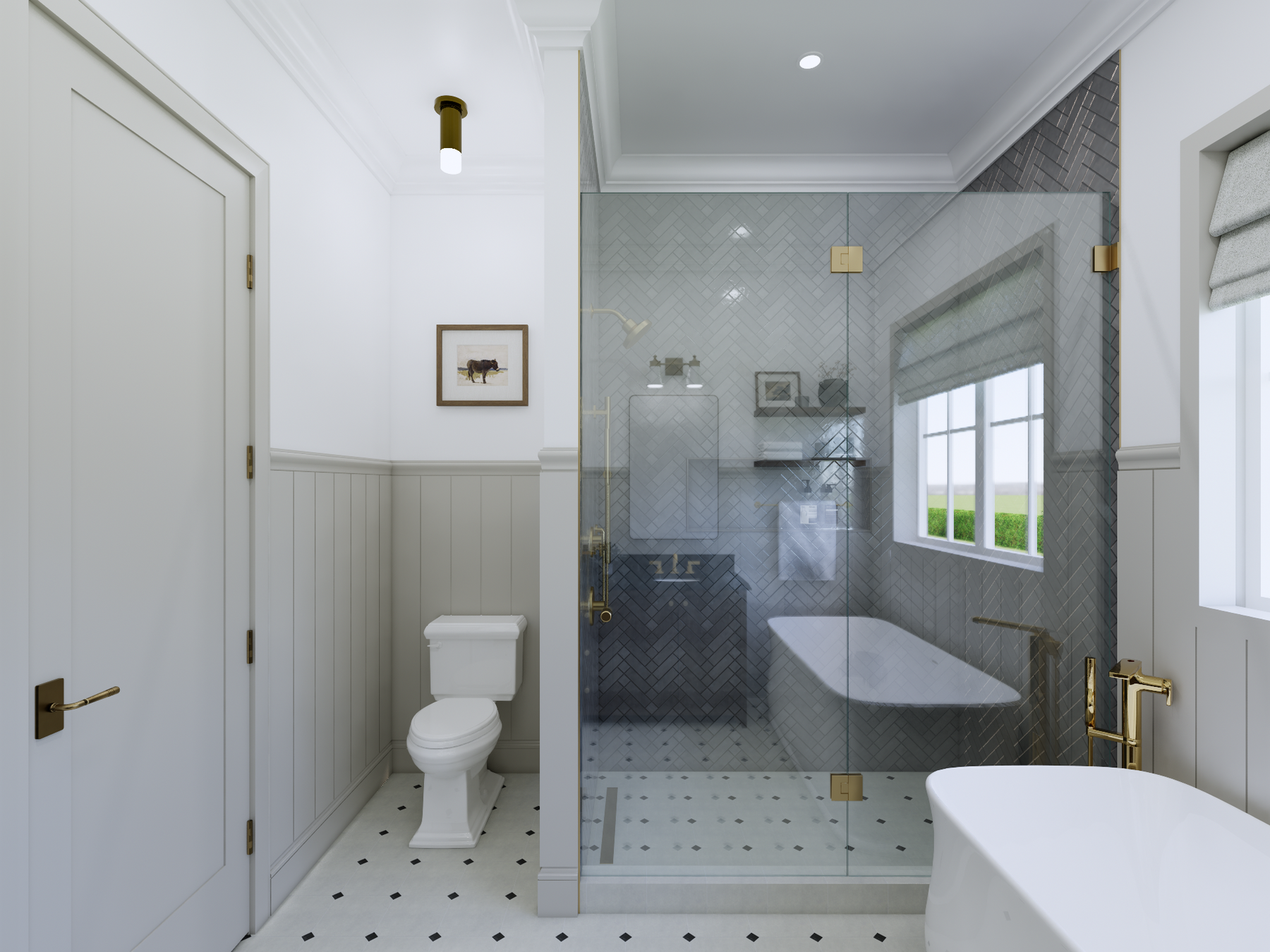

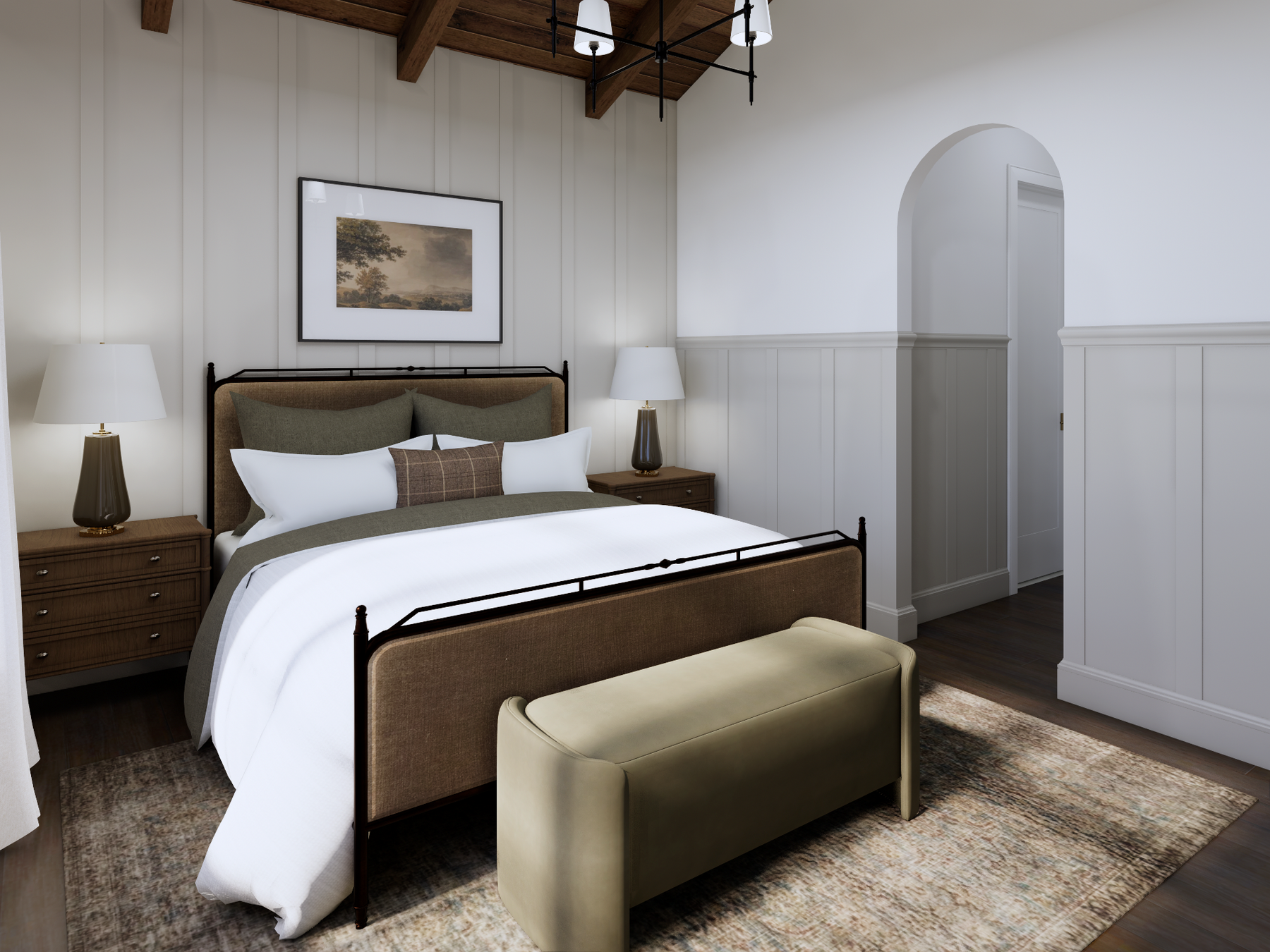

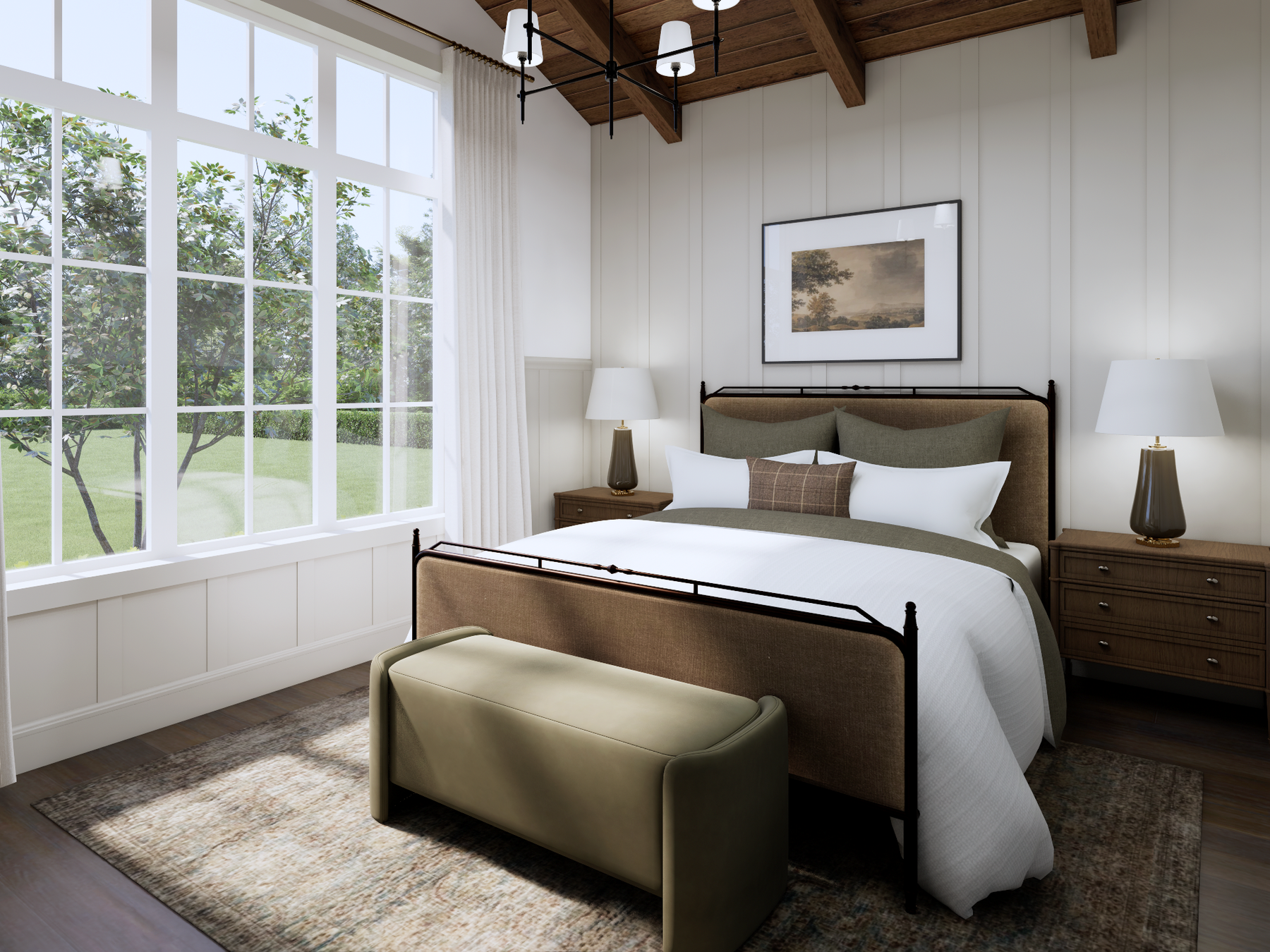

The bedroom wing keeps the sleeping spaces together while providing the primary suite with a comfortable degree of privacy. This creates a natural separation between shared and private spaces without making the home feel disconnected.

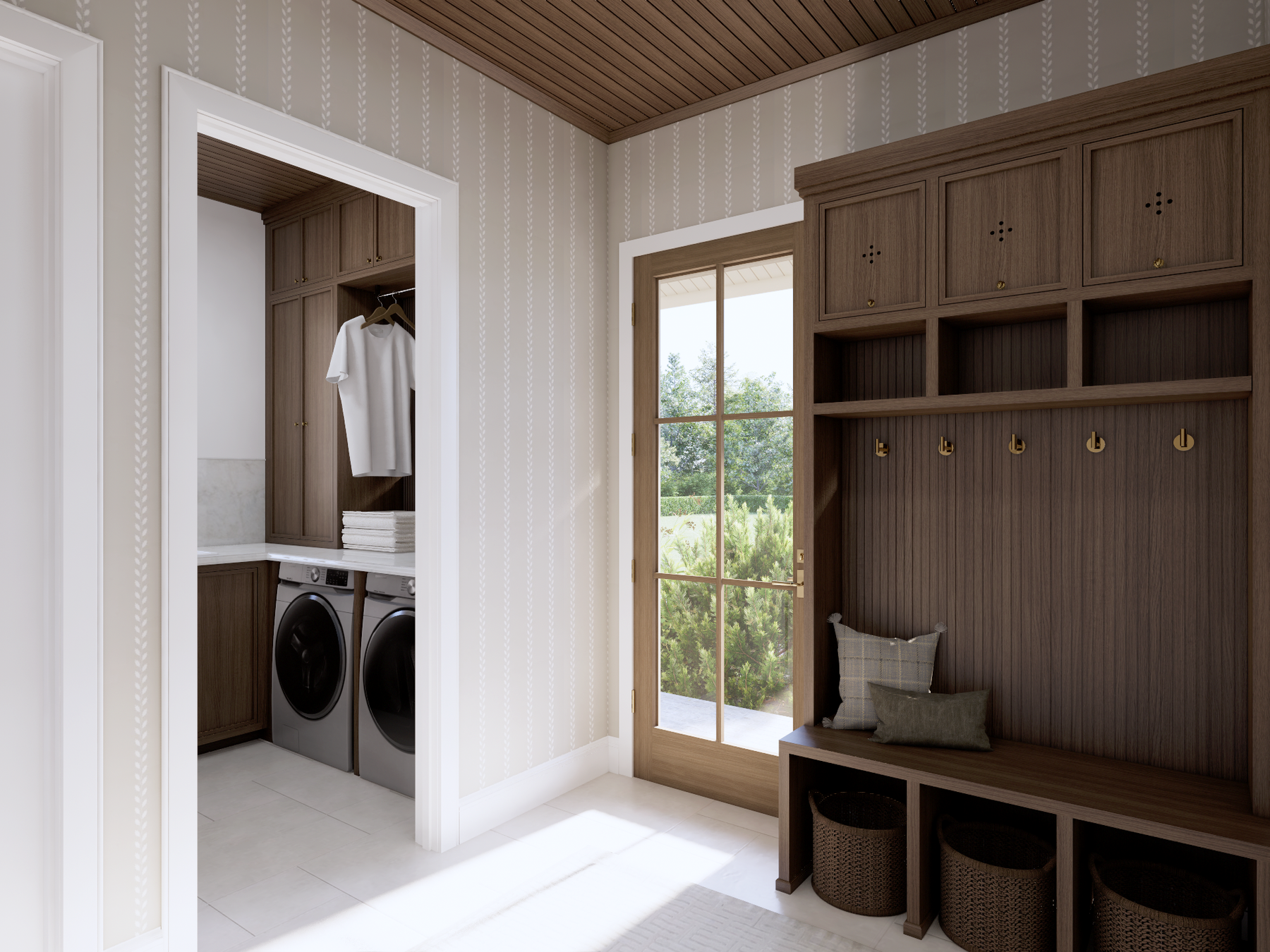

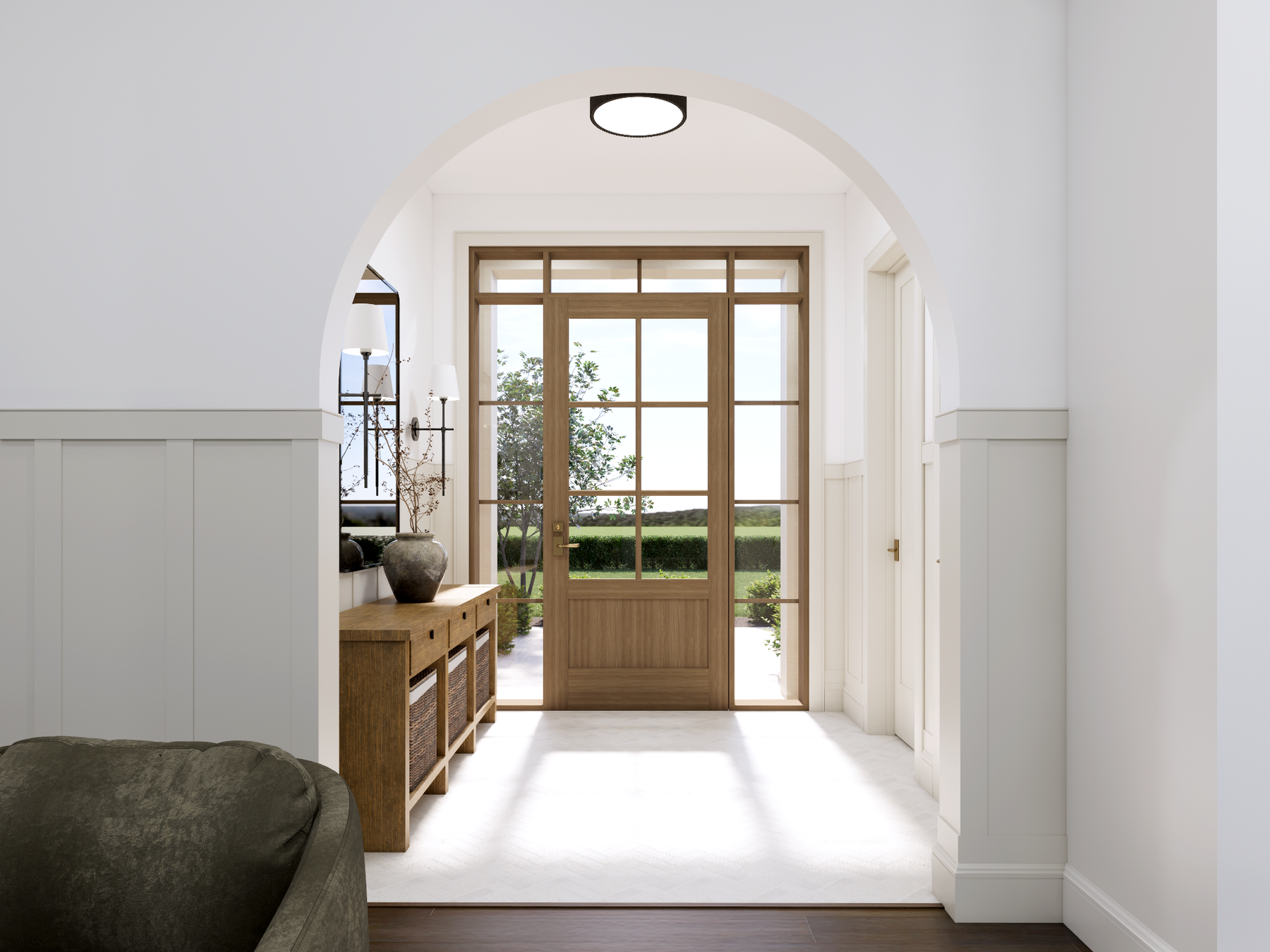

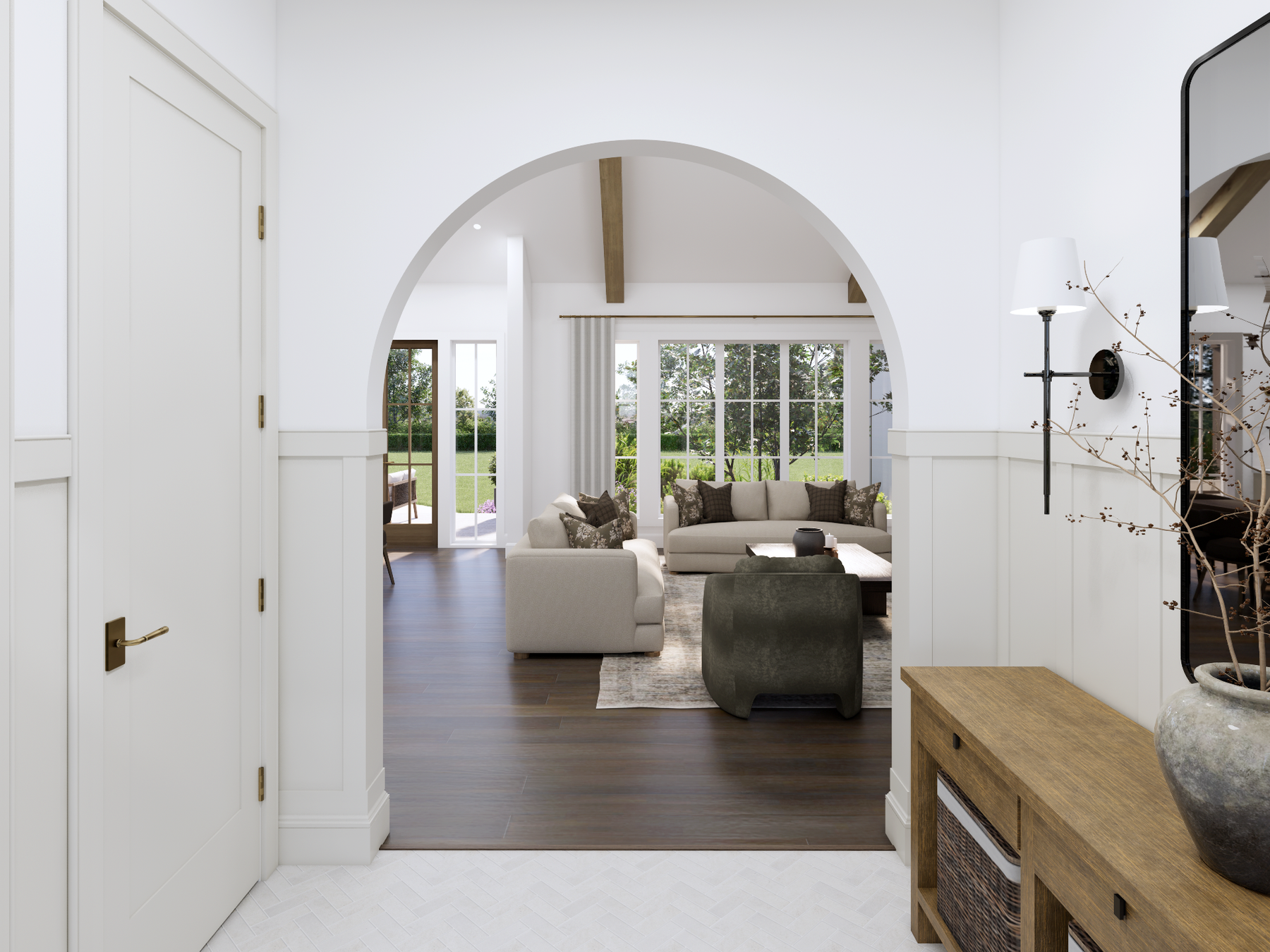

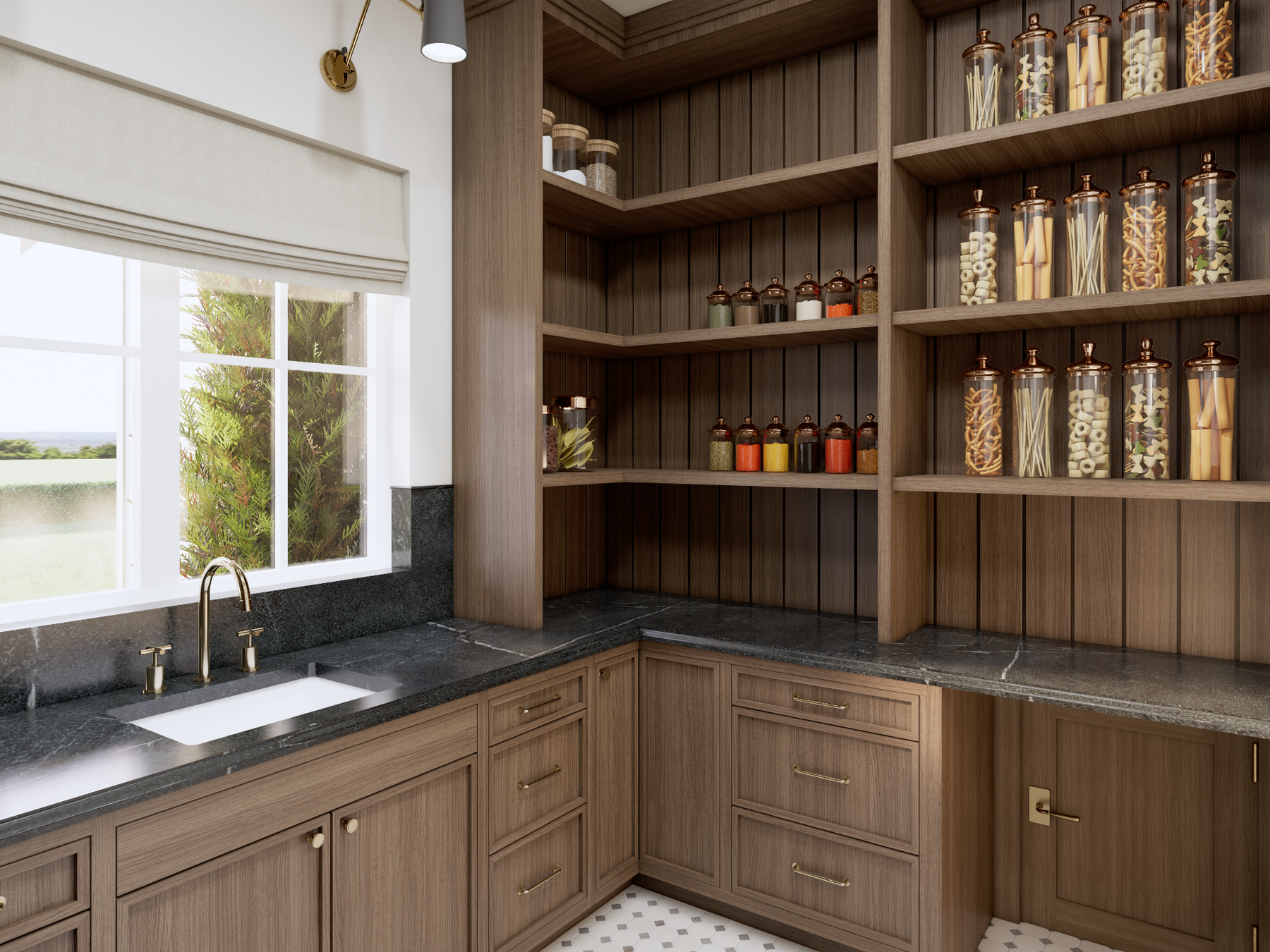

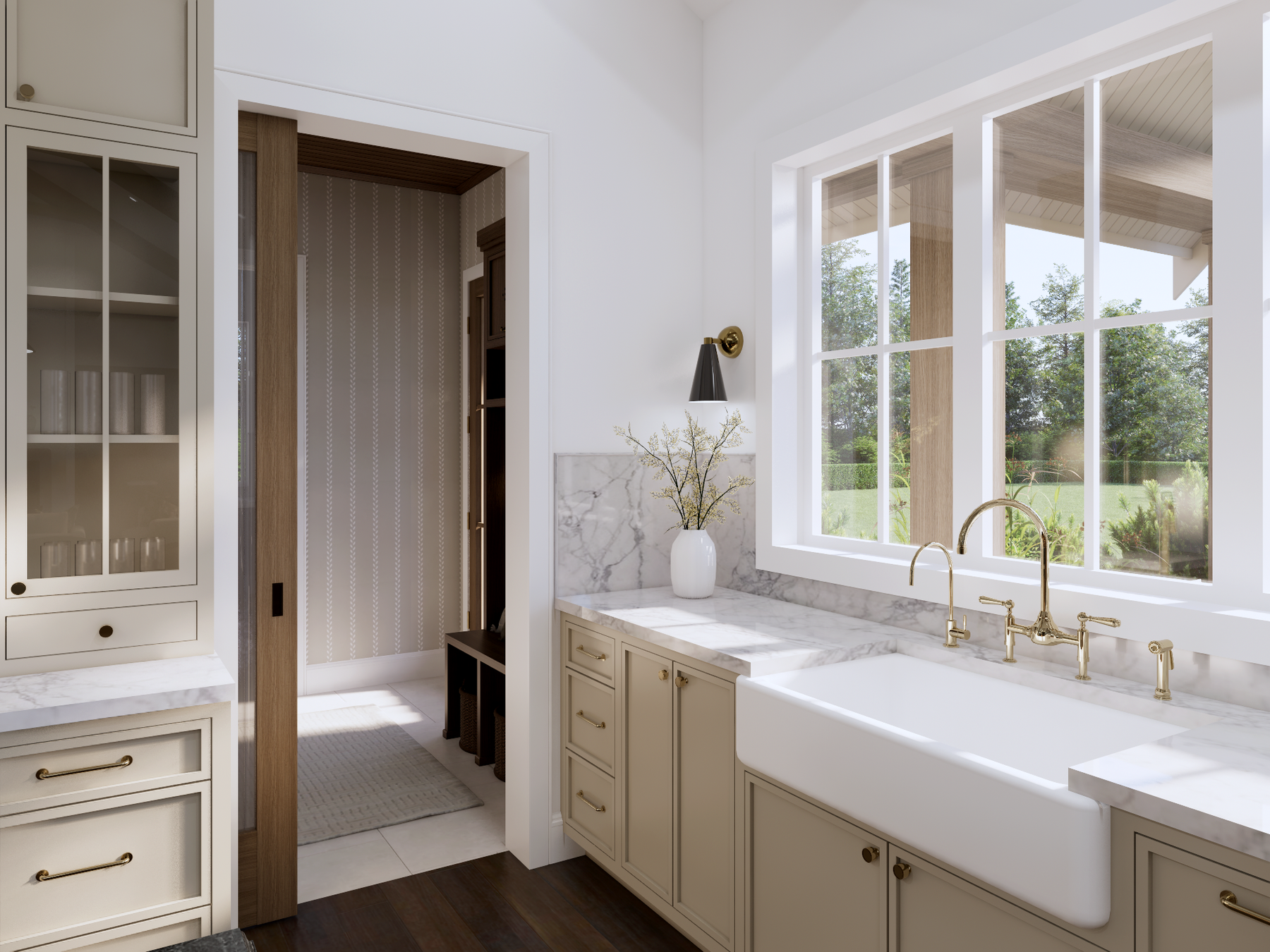

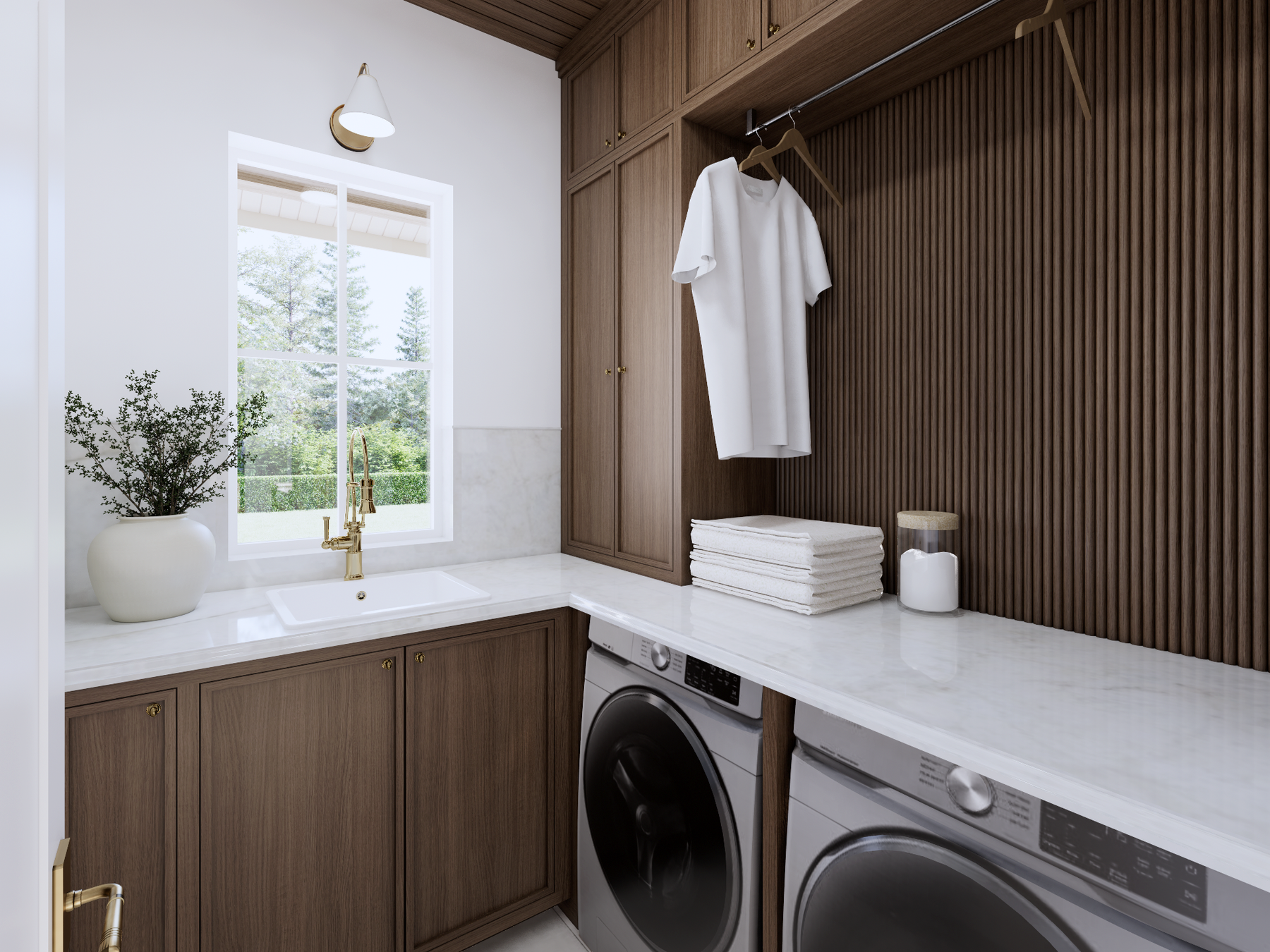

Behind the scenes, the practical spaces work just as hard. The mudroom, pantry, laundry, and mechanical room are conveniently grouped near the garage, keeping everyday tasks organized and helping maintain a clean, uncluttered main living area. A flexible room near the entry can adapt over time as an office, guest room, den, or hobby space.
Thoughtful flexibility continues into the future, with options to add basement stairs through modification and potential for an above-garage suite. The Caldwell is designed to feel just as relevant years from now as it does today.
 |
 |
 |
 |
 |
| 2248 Sqft | 3 Bedroom | 2.5 Bath | 3 Car | French Country |
Design DetailsPLAN #: CaldwellSTYLE: French Country DIMENSIONS: 86'-10" X 57’-0" SQUARE FT: 2248 SQ. FT. BEDROOMS: 3 BATHROOMS: 2.5 FOUNDATION: Slab |
Floor Plan Features• Efficient Floor plan with Central Vaulted Great Room to maximize space |
FAQs
We Are Here to Answer Your Questions
Below are some frequently asked questions around purchasing our Home Plans.
If you don't find what you are looking for, please don't hesitate to reach out to our Client Care team.
Your House Plans come complete with:
- Foundation Plans
- Floor Plans
- Roof Plan
- Building Elevations
- Building Cross Sections
- Typical Building Specifications
- Typical Building Details
- Construction Ready Drawings (dependent on municipality & code)
- Plus some Exterior Perspective Drawings and Images
We do not provide the following information:
- Architectural or Engineering Stamp (handled locally if required)
- Site Plan (handled locally when required)
- Electrical Plan
- Mechanical Drawings (location of heating and air equipment and duct work). Your sub-contractors will handle this information.
- Framing layouts with beam sizes and locations
- Energy calculations (handled locally when required)
All of our plans comply with the Canadian National Building Code.
Because of the wide range of requirements throughout various states and municipalities, it is possible that the plans may not have all the information required by your local building department.
If this is the case, we recommend hiring a local design professional or engineer who can assist bringing your plans up to your local building code.
Some states require that a licensed architect or engineer review and stamp your house plans. If this is the case where you will be building, a local professional will be able to assist you.
SITE ANALYSIS
If your home plan will be built in BC, we provide this for an extra fee of $285- available at checkout)
You are responsible to obtain and coordinate:
- Roof Truss Drawings via a local truss manufacturer
- Any Consultant coordination
PDF files are published documents of your house plans meant for single use construction.
Digital CAD files are AutoCAD computer files of the original house plans. Purchased through a multi-use license, they are editable drawings meant for consultant use.
By contacting our office, you can also request (by purchase):
- 3D Color Renderings
- Exterior Material Packages
- Interior Design
1. Approval on modifications from Su Casa Design team and fee proposal for modifications sent (if required).
2. Purchase of Stock plan via the Su Casa Shoppe website.
3. Full Payment for modifications (if requested).
4. Work on modifications begins based on current project timelines (estimated completion time- 3 to 4 weeks).*
5. Delivery of project files.
*For larger and complex modifications, this timeline could be up to 6 weeks to complete.
