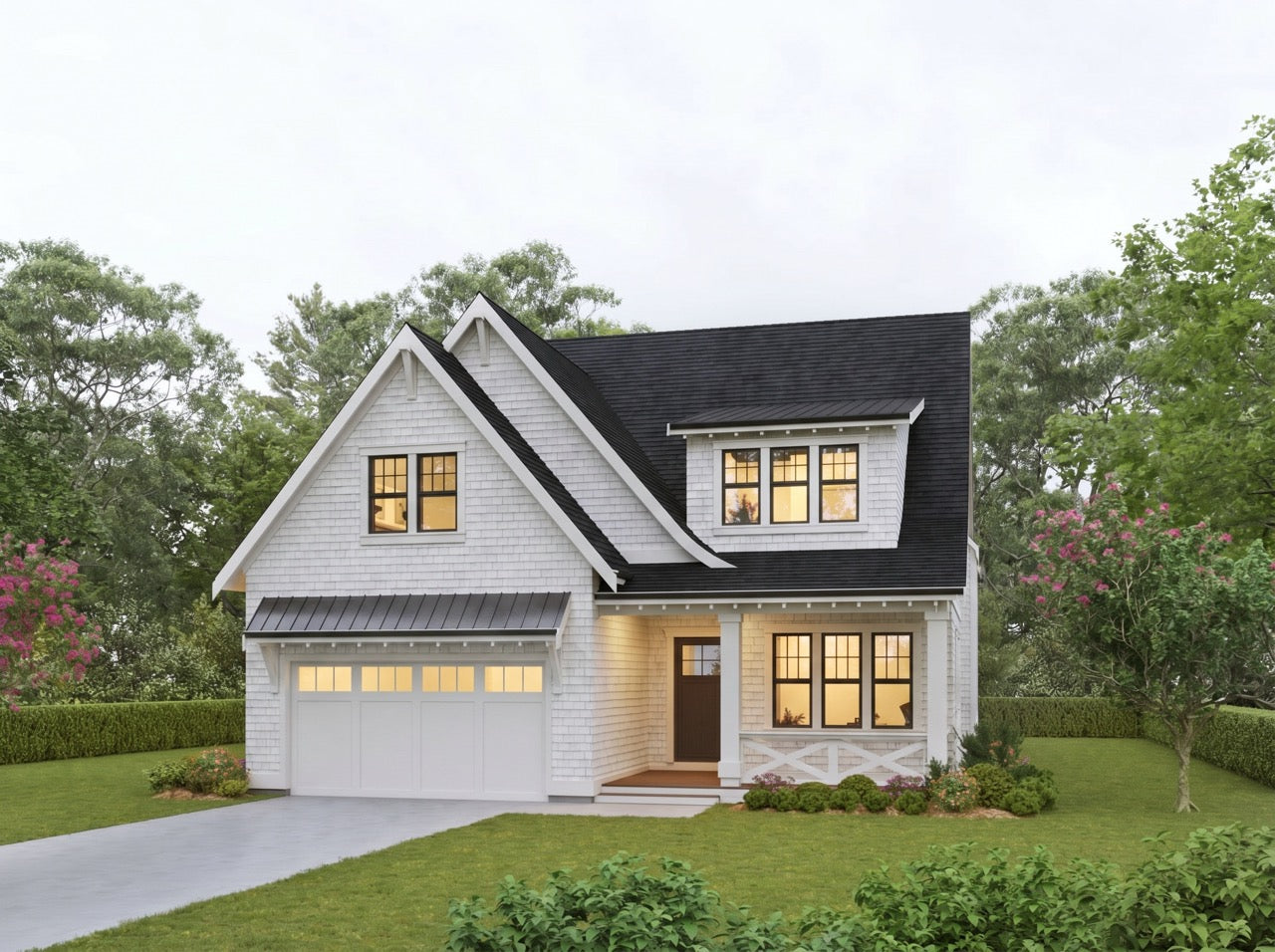

Oak Hill House Plan: A Farmhouse with Charm and Character
When you imagine living here, you can see yourself relaxing in the living room with high ceilings and a warm fireplace. This is the perfect place to gather with friends and family. You can also imagine cooking dinner in the spacious kitchen, which comes with a walk-in pantry for extra storage. And when you're done cooking, you can relax on the covered patio.
Upstairs, you can see yourself sleeping in the comfortable master bedroom. The master bedroom also comes with a large walk-in closet and a private bathroom. Additionally, there are two other bedrooms and a convenient upper floor laundry room.
But that's not all! the bonus room over the garage is perfect for extra storage or even another bedroom. So come on over and look at the Oak Hill House Plan. We think you'll love it!
|2901 Sqft||3 Bedroom||2.5 Bath||2 Car||Farmhouse|
Design DetailsPLAN #: Oak Hill
DIMENSIONS: 40’-8” X 54’-6”
SQUARE FT: 2901 SQ. FT. (Main - 1526 sqft, Upper- 1375 sqft)
GARAGE: 2 CAR
Floor Plan Features
• High Ceiling in Living Room
We Are Here to Answer Your Questions
Below are some frequently asked questions around purchasing our Home Plans.
If you don't find what you are looking for, please don't hesitate to reach out to our Client Care team.
Your House Plans come complete with:
- Foundation Plans
- Floor Plans
- Roof Plan
- Building Elevations
- Building Cross Sections
- Typical Building Specifications
- Typical Building Details
- Construction Ready Drawings (dependent on municipality & code)
- Plus some Exterior Perspective Drawings and Images
We do not provide the following information:
- Architectural or Engineering Stamp (handled locally if required)
- Site Plan (handled locally when required)
- Electrical Plan
- Mechanical Drawings (location of heating and air equipment and duct work). Your sub-contractors will handle this information.
- Framing layouts with beam sizes and locations
- Energy calculations (handled locally when required)
All of our plans comply with the Canadian National Building Code.
Because of the wide range of requirements throughout various states and municipalities, it is possible that the plans may not have all the information required by your local building department.
If this is the case, we recommend hiring a local design professional or engineer who can assist bringing your plans up to your local building code.
Some states require that a licensed architect or engineer review and stamp your house plans. If this is the case where you will be building, a local professional will be able to assist you.
If your home plan will be built in BC, we provide this for an extra fee of $285- available at checkout)
You are responsible to obtain and coordinate:
- Roof Truss Drawings via a local truss manufacturer
- Any Consultant coordination
PDF files are published documents of your house plans meant for single use construction.
Digital CAD files are AutoCAD computer files of the original house plans. Purchased through a multi-use license, they are editable drawings meant for consultant use.
By contacting our office, you can also request (by purchase):
- 3D Color Renderings
- Exterior Material Packages
- Interior Design
1. Approval on modifications from Su Casa Design team and fee proposal for modifications sent (if required).
2. Purchase of Stock plan via the Su Casa Shoppe website.
3. Full Payment for modifications (if requested).
4. Work on modifications begins based on current project timelines (estimated completion time- 3 to 4 weeks).*
5. Delivery of project files.
*For larger and complex modifications, this timeline could be up to 6 weeks to complete.
