$2,495.00

For custom changes not shown in the product images, contact our office via the link below:
STOCK PLAN CHANGE REQUEST FORM

* We will quickly review your change request to provide a cost estimate.

* PLEASE NOTE: Stock Plan Alteration Requests require additional payment arrangements, which are not covered by any pre-selected plan add-ons.

All Plan Add-Ons are in USD.
Final checkout prices may differ due to current currency rates for your region. Confirm your final total before purchase.

Available Plan Add-Ons:
FILE TYPE
- Site Plan (contact for pricing quote)

PLAN ALTERATIONS
- Additional Garage Bay +$295 USD (contact for plan coordination)
- Basement Foundation (all types) +$395 USD
- Slab or Crawlspace Foundation +$195 USD

Plan add-on subject to availability depending on your selected Su Casa Home Plan.

File

PDF File Only

Digital CAD File (Consultant Coordination & Multiple Use)

NOTE: Digital CAD File is for Consultant Coordination and Multiple Use Licensing.

Ready to Build Plans

Quality Assured Design

Secure payments

Plans delivered electronically via email within 2-3 business days (unless custom alterations have been requested).

[{"id":44928181403748,"title":"PDF File Only","option1":"PDF File Only","option2":null,"option3":null,"sku":null,"requires_shipping":false,"taxable":true,"featured_image":null,"available":true,"name":"The Oakhaven- Su Casa Shoppe - PDF File Only","public_title":"PDF File Only","options":["PDF File Only"],"price":249500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":44928181436516,"title":"Digital CAD File (Consultant Coordination \u0026 Multiple Use)","option1":"Digital CAD File (Consultant Coordination \u0026 Multiple Use)","option2":null,"option3":null,"sku":null,"requires_shipping":false,"taxable":true,"featured_image":null,"available":true,"name":"The Oakhaven- Su Casa Shoppe - Digital CAD File (Consultant Coordination \u0026 Multiple Use)","public_title":"Digital CAD File (Consultant Coordination \u0026 Multiple Use)","options":["Digital CAD File (Consultant Coordination \u0026 Multiple Use)"],"price":349500,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

Interested to know more about this plan?

Click the link below to download your PDF.

DOWNLOAD THE OAKHAVEN PDF

A Contemporary Farmhouse Rancher

Name: The Oakhaven- Su Casa Shoppe
Brand: Contemporary
Price: 2495.0 USD
Availability: InStock

The Oakhaven is built to make the most of the Okanagan landscape, with 3,786 sq ft of carefully planned spaces. Stone details and floor-to-ceiling windows bring lake views into your living room, letting the outdoors add to the experience.

Inside, every room serves a purpose. The great room, with its high ceilings and wet bar, is perfect for gatherings or a quiet evening in. The principal suite is designed as a place to recharge, with an attached office for focus when you need it.

Convenience is part of every detail, from laundry rooms on each floor to a basement ready for workouts or poolside lounging. With 4 bedrooms, 3.5 baths, and outdoor areas like a covered patio and deck, The Oakhaven has everything in place to feel like home.

For details, reach out to our Client Care team via the contact form provided.


3786 Sqft	4 Bedroom	3.5 Bath	2 Car	Contemporary, Farmhouse, Transitional

Design Details

PLAN #: Oakhaven
STYLE: Contemporary, Farmhouse, Transitional
DIMENSIONS: 57’-10” X 59’-6”
SQUARE FT: 3786 SQ. FT. (1896 SQFT Main Floor, 1890 SQFT Basement Floor)
BEDROOMS: 4
BATHROOMS: 3.5
GARAGE: 2 CAR
FOUNDATION: Developed Walk-Out

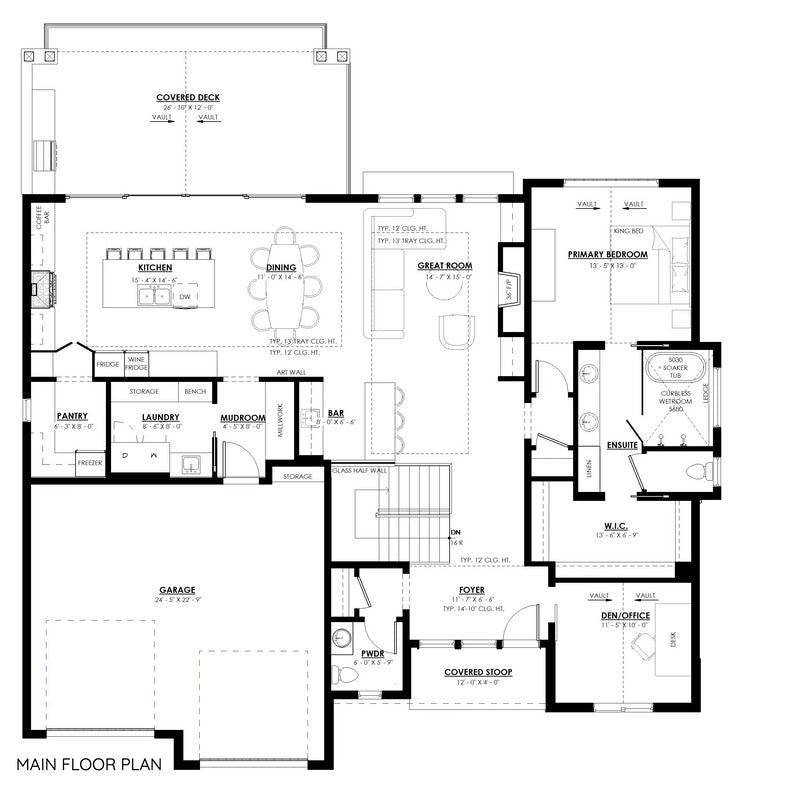

Floor Plan Features

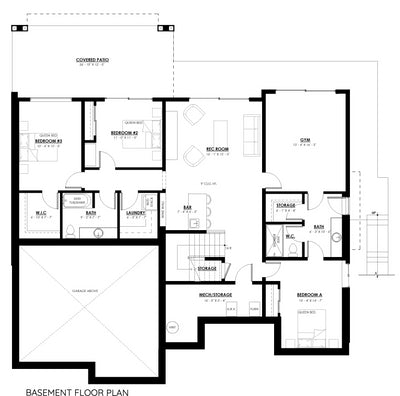

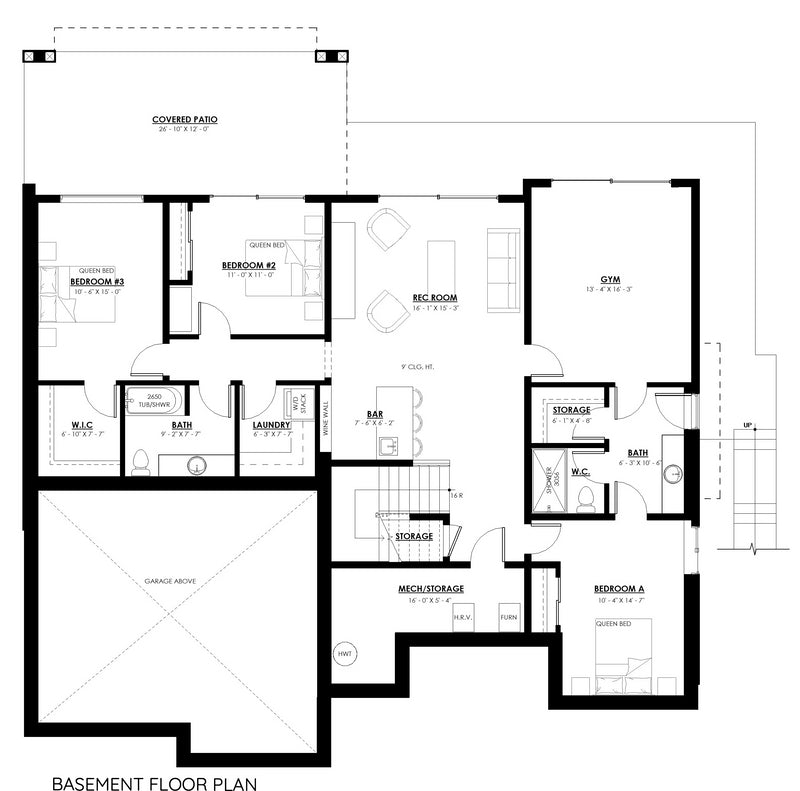

Developed Walk-out Basement with 1 bedroom suite
Ample storage throughout living spaces
13' tray ceiling heights through main floor great room and kitchen
Main floor laundry room
Spacious main floor bedroom suite
2 bedrooms in basement (plus 1 bedroom in developed suite)
Home office off the foyer

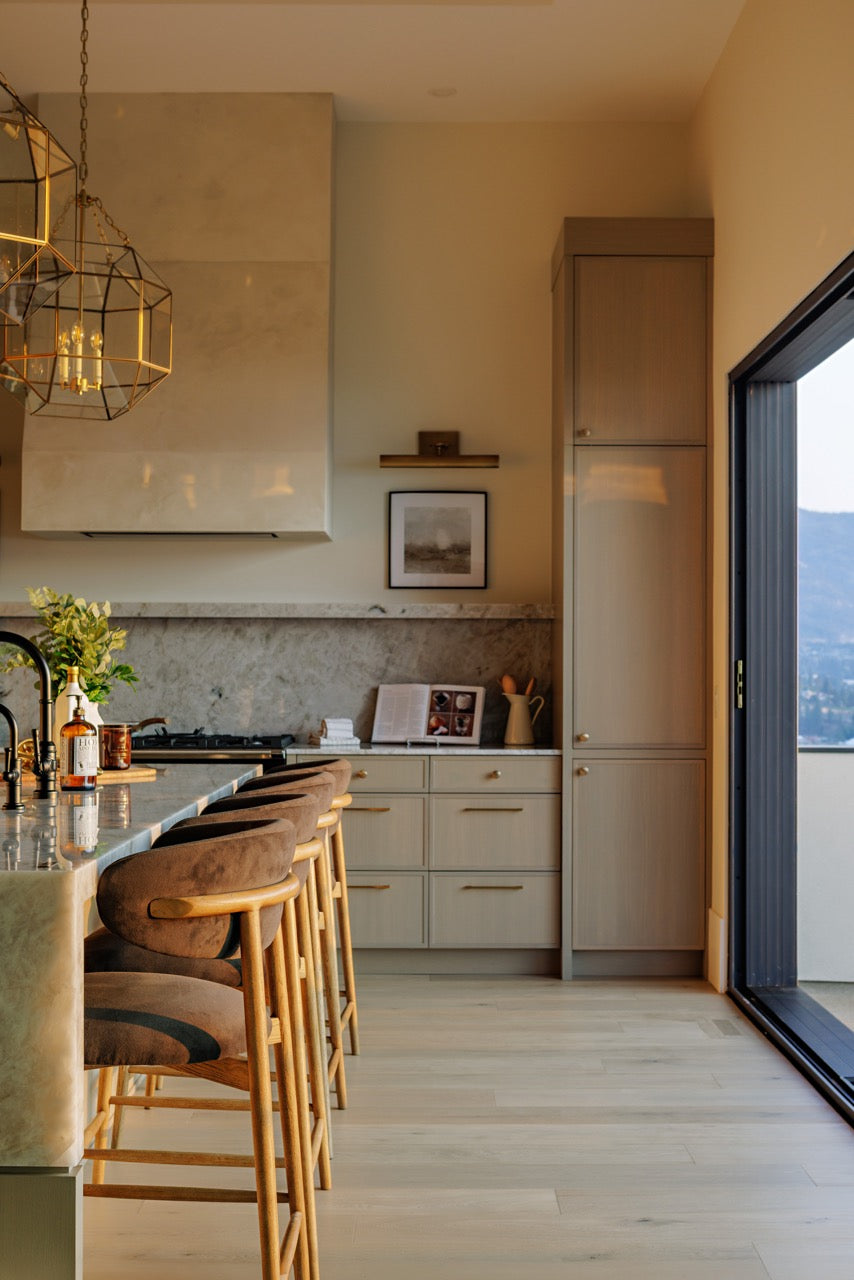

Kitchen equipped with walk-in pantry

FAQs

We Are Here to Answer Your Questions

Below are some frequently asked questions around purchasing our Home Plans.

If you don't find what you are looking for, please don't hesitate to reach out to our Client Care team.

Your House Plans come complete with:

- Foundation Plans
- Floor Plans
- Roof Plan

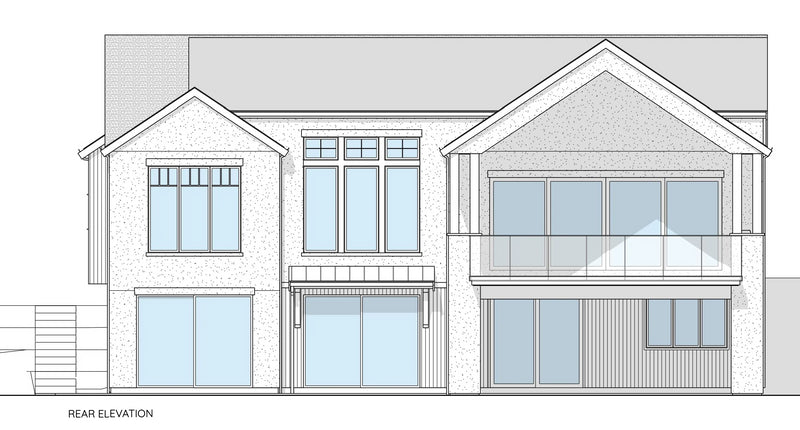

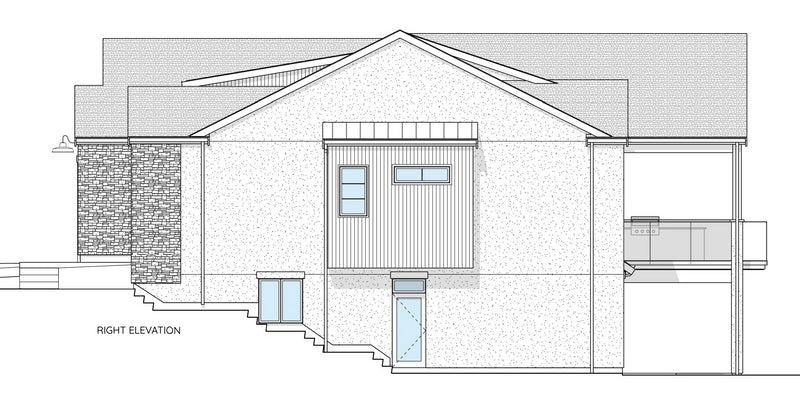

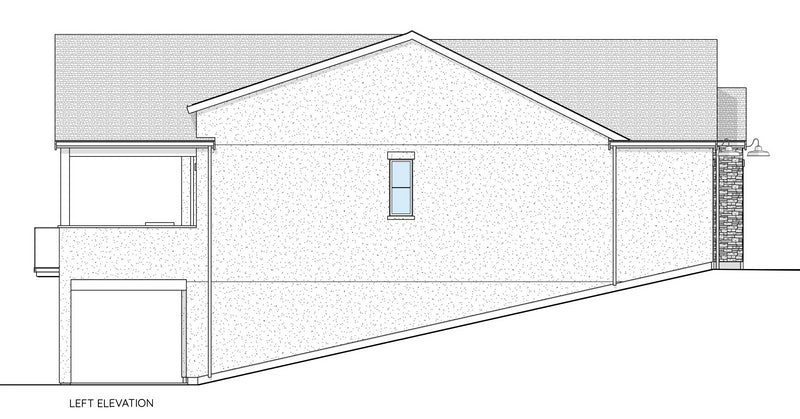

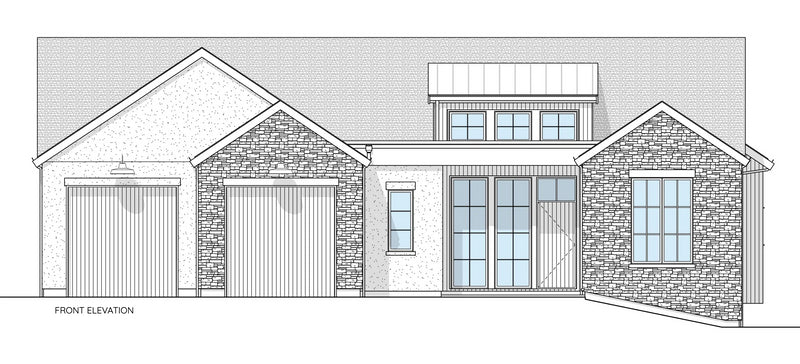

- Building Elevations
- Building Cross Sections
- Typical Building Specifications
- Typical Building Details
- Construction Ready Drawings (dependent on municipality & code)

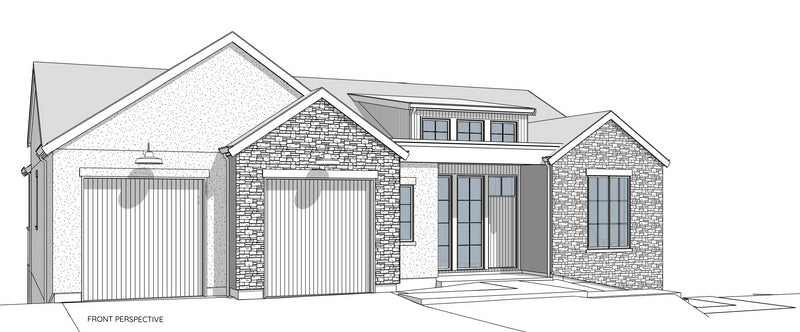

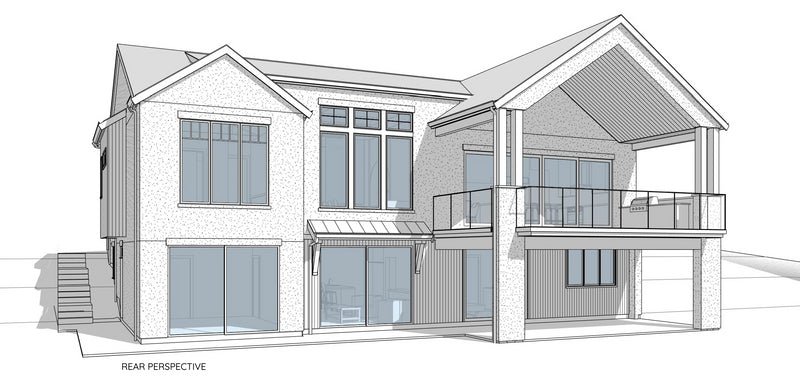

- Plus some Exterior Perspective Drawings and Images

We do not provide the following information:

- Architectural or Engineering Stamp (handled locally if required)
- Site Plan (handled locally when required)
- Electrical Plan
- Mechanical Drawings (location of heating and air equipment and duct work). Your sub-contractors will handle this information.
- Framing layouts with beam sizes and locations
- Energy calculations (handled locally when required)

All of our plans comply with the Canadian National Building Code.

Because of the wide range of requirements throughout various states and municipalities, it is possible that the plans may not have all the information required by your local building department.

If this is the case, we recommend hiring a local design professional or engineer who can assist bringing your plans up to your local building code.

Some states require that a licensed architect or engineer review and stamp your house plans. If this is the case where you will be building, a local professional will be able to assist you.

SITE ANALYSIS
If your home plan will be built in BC, we provide this for an extra fee of $285- available at checkout)

You are responsible to obtain and coordinate:

- Roof Truss Drawings via a local truss manufacturer
- Any Consultant coordination

PDF files are published documents of your house plans meant for single use construction.

Digital CAD files are AutoCAD computer files of the original house plans. Purchased through a multi-use license, they are editable drawings meant for consultant use.

By contacting our office, you can also request (by purchase):

- 3D Color Renderings
- Exterior Material Packages
- Interior Design

1. Approval on modifications from Su Casa Design team and fee proposal for modifications sent (if required).

2. Purchase of Stock plan via the Su Casa Shoppe website.

3. Full Payment for modifications (if requested).

4. Work on modifications begins based on current project timelines (estimated completion time- 3 to 4 weeks).*

5. Delivery of project files.

*For larger and complex modifications, this timeline could be up to 6 weeks to complete.
